CEMS performed all engineering services necessary for this 2 phase, LEED Silver project.
Phase 1 – Prepared all plans and specs, including supporting design analysis, cost estimates, etc., as defined by the DD Form 1391 and code 3 effort. CEMS also conducted all charrettes.

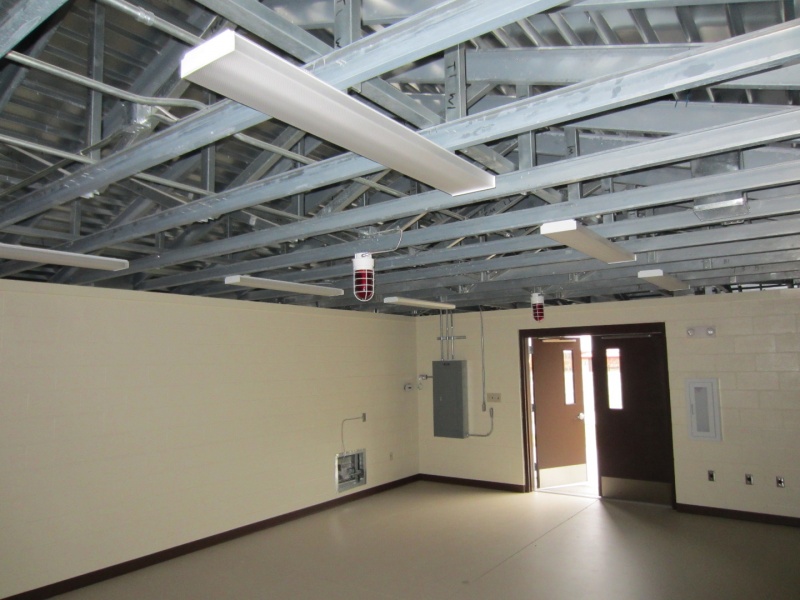

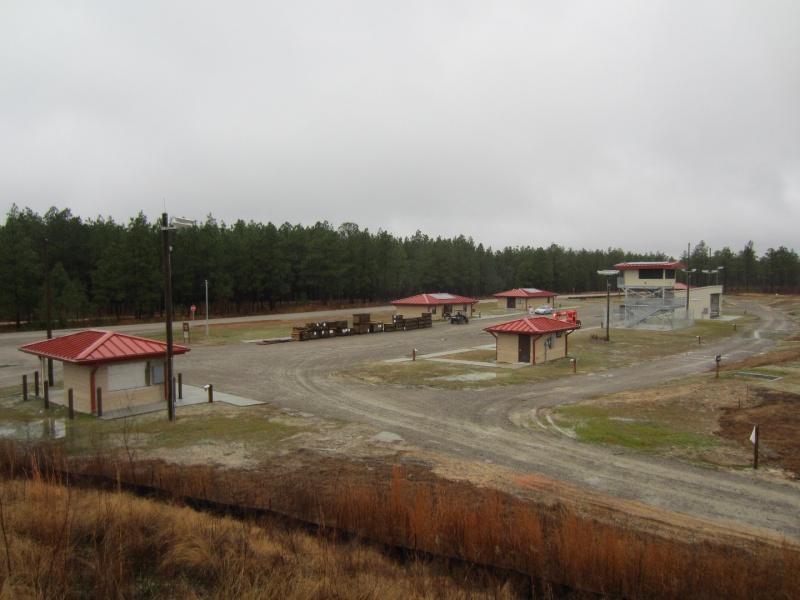

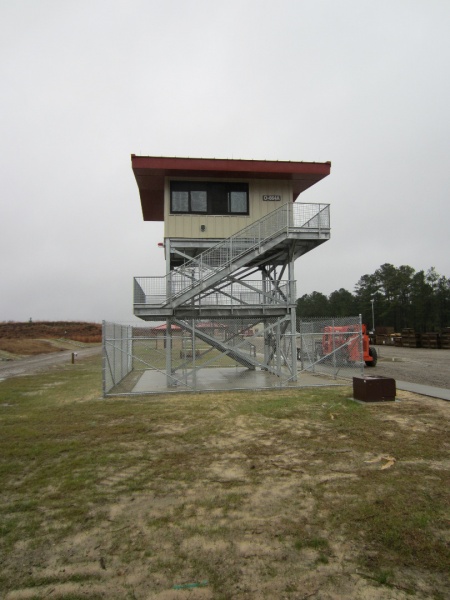

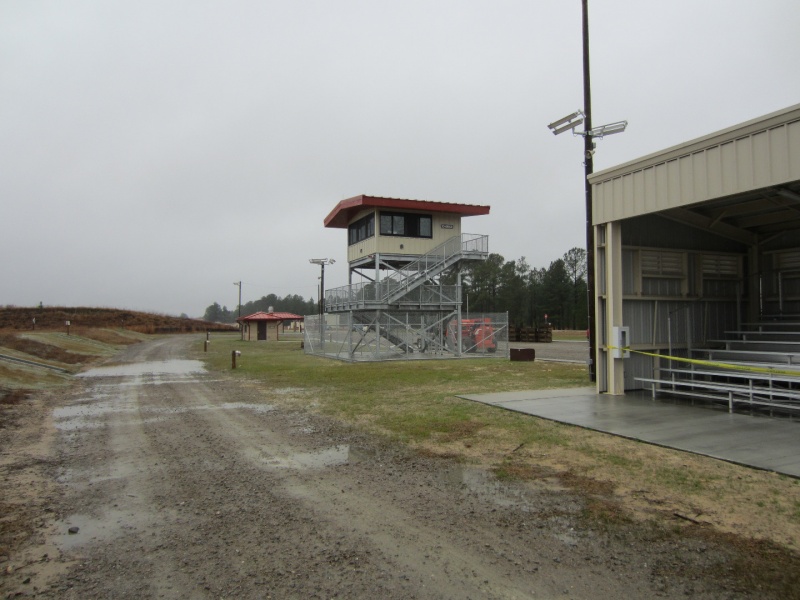

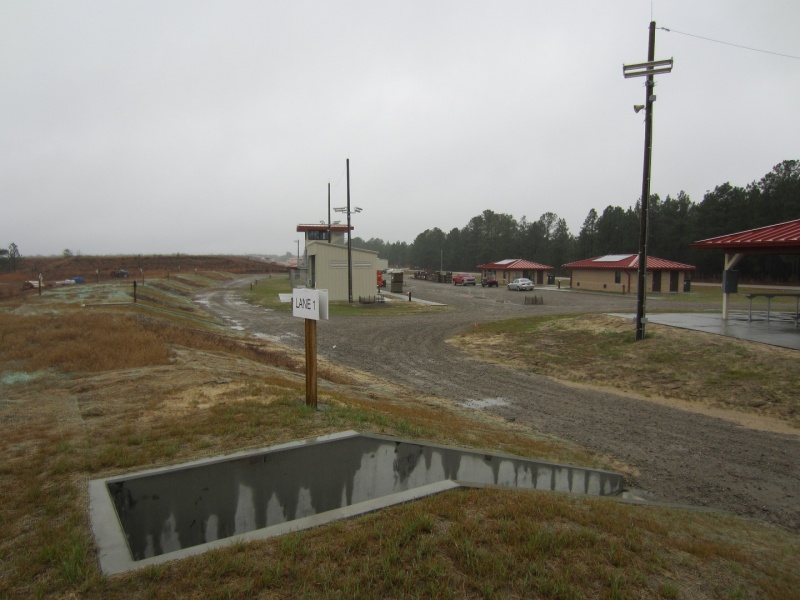

Phase 2 – Provided full design-bid-build documents for the 1,500 meter, six firing position/lane Multipurpose Machine Gun and Sniper Range with Stationary Infantry Targets (SITs), Moving Infantry Targets (MITs), and Stationary Armor Targets (SATs) in a tactical array with various machine guns; grenade machine guns; and sniper rifles. The 150 acre range included: Operations and Storage Building; Instructional Building; Range Tower; Vault
Latrine; Covered Messing Area; Covered Bleacher; and Ammo Break Down

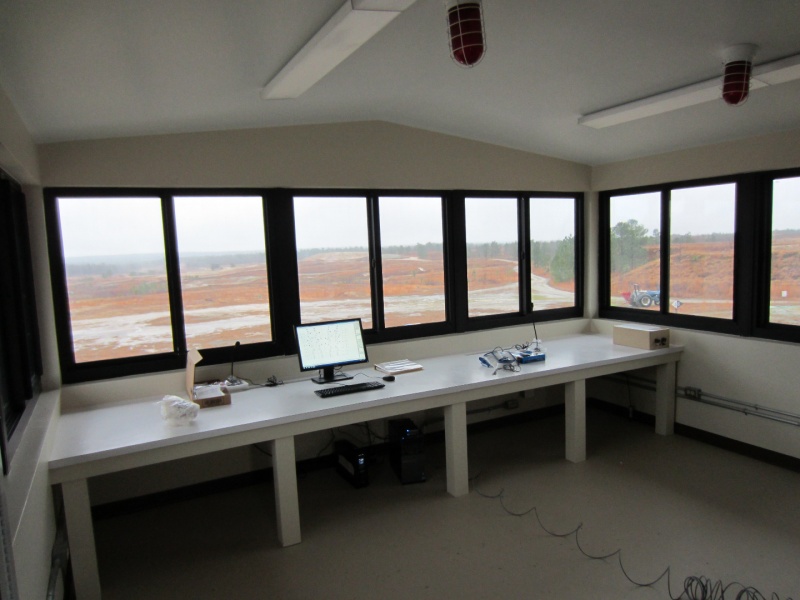

Building. Targets were fully automated and controlled from the range tower
via fiber optic communications. Effort included aerial (Photogrammetric) survey,
and UXO Avoidance Survey Coordination.
Construction Cost: $4.3 Million
